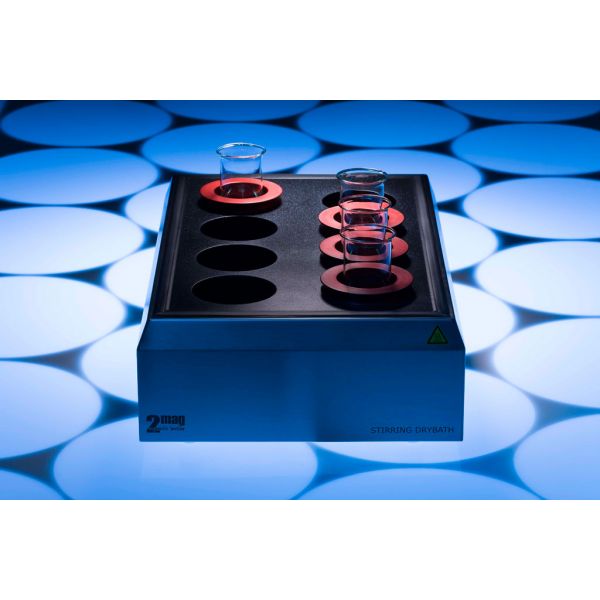

2 Mag STIRRING DRYBATH 8-250 ERL incl. heatMIXcontrol unit

Plus de vues

2 Mag STIRRING DRYBATH 8-250 ERL incl. heatMIXcontrol unit
Référence: A27750

Stirring-heating block combination with 8 stirring positions, suitable for 250 ml Erlenmeyer flasks.

Unité de vente : Pièce
OU
  • Service après-vente excellent
  • Propre service technique
  • Large gamme de produits
  • Conseils personnalisés
Description

Détails

Stirring-heating block combination with 8 stirring positions, 8 bore holes, ø 87.2 mm, depth 78 mm, distance 100 mm, suitable for 250 ml Erlenmeyer flasks.
Maintenance-free and wear-free by inductive 2mag-Magnetic Drive concept, extremely wide speed range of 100 to 2,000 rpm, 100% synchronized speed, jerk-free stirring even at low speeds, 4-step power settings of the stirrer, high power setting for viscous liquids and reduced power setting for long-term operation without any heating effects caused by the stirrer, clear digital display for settings of stirrer speed, stirrer power and temperature of the integrated heater, SoftStart procedure for reliable catching/centering and safe acceleration of the stirring bar. Massive heating block made of resistant aluminium alloy, PTFE-coated for increased chemical resistance and easier cleaning, lowest possible temperature gradient inside the stirring vessels, integrated electrical heater, maximum heating temperature +200 °C, PowerDetect for automatic compensation of physically determined loss in stirring power which can come up to 40% at high temperatures, specially made insulated stainless steel frame for energy- and time saving heating process, additionally for a homogenous temperature distribution and protection against accidental contact, independent over-temperature protection inside the plate.
Separate control unit for operation of magnetic stirrer and integrated heater, for long-term protection of the electronics against aggressive liquids and gases as well as thermal influences, stainless steel housing. Inclusive 8 contact adapters for an optimized heat transfer.

Stirring positions: 8.
Stirring positions distance: 100 mm.
Bore holes Ø/depth: 87.2 / 78 mm.
Stirring volume/stirring point: 1 - 250 ml.
Stirring power: 10/20/30/40 W (4-step).
Max. temperature: +200 °C.
Speed range: 100 - 2,000 rpm.
Supply voltage: 230V / 1,000W.
Dimensions (WxDxH): 335x515x150 mm.
Weight (gross): approx. 38 kg.

Informations complémentaires

Informations complémentaires

Dimensions totales 335x515x150 mm(BxDxH)
Avec display Non
Unité de vente Pièce
Garantie 3 ans
Poids 38 kg
Chauffage(Watt) 1000W
Marque 2 Mag
Alimentation 230 V
Vitesse/fréquence 100-2000 rpm
Max. volume 1-250 ml
Nombre de positions 8
Pilotage Unité de contrôle externe
Code UNSPSC 41102423
Iso Code PCE
Référence A27750
